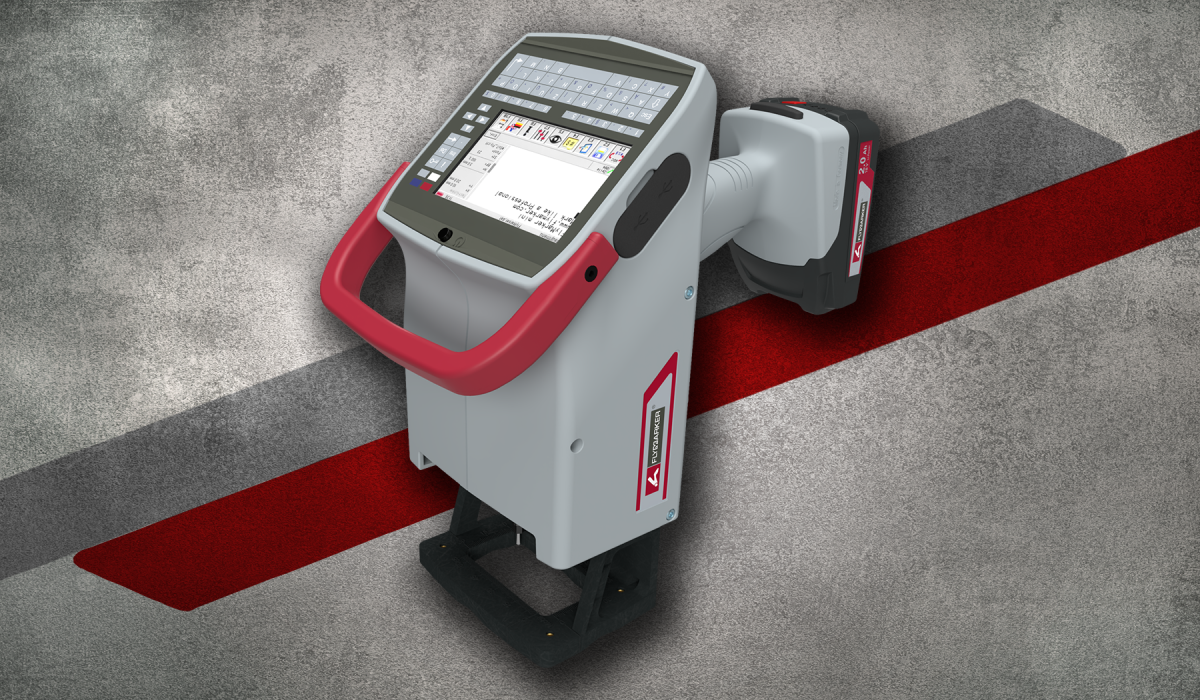

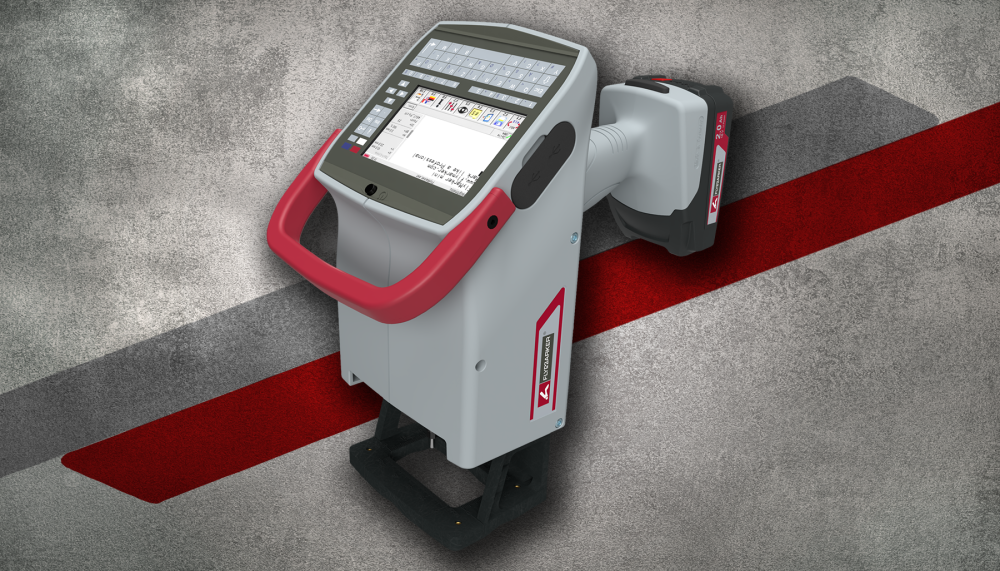

FlyMarker mini 65/30 4,3" touch NEW

Data Matrix CodeElectro-magneticHandheld

Perfect marking per fingertip

Modern design meets functionality - Mobile dot peen marker for permanent and flexible marking on almost all materials!

from 3.990,- €

Product details

New operating concept

Our bestseller among the battery-operated handheld marking systems now with touch user interface. With the new operating concept of the FlyMarker mini 65/30 4.3" touch, we would like to offer our customers a modern upgrade. Of course, even with a new look, it has the same features that make the FlyMarker mini 65/30 a top performer - 100% mobile, lightweight, flexible and guarantees fast, permanent and tamper-proof marking on almost any surface!

INNOVATIVE

  • Simple operation via touch user interface
  • Latest processor technology for maximum system performance
  • High-resolution large 4.3" color display with clear and intuitive operating software

EASY TO USE

  • Easy handling of the battery-operated dot peen marker thanks to a device weight of only 2.4 kg (incl. battery)
  • Perfectly adapted device design for effortless 1- or 2-hand operation
  • Flexibly adjustable impact strengths, perfectly adapted to the material and the desired marking depth

PORTABLE

  • 2 powerful 18V lithium-ion batteries (standard scope of delivery) allow mobile marking at any time
  • ALL-IN-ONE system with integrated control unit
  • Wireless marking of immobile and voluminous workpieces or components that are difficult to access



Comparison chart of all FlyMarker mini products





Marking area (x/y): 65 x 30 mm

Available character heights: 1,0 to 29,9 mm

Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)

Drive of the marking pin: Electromagnetic

Available characters: Numbers 0 - 9, capital letters / small letters A - Z; a-zvarious punctuation marks. , / etc.

Interface: USB-A, USB-B, Ethernet

Height tolerance compensation: Up to max. 5 mm (constant marking depth also on uneven surfaces)

Weight: 2,4 kg incl. battery

Battery capacity: 2,0 Ah 18V (Lithium-Ion) / 5,2 Ah 18V (optional)

Marking force: 30 possible force settings(constant impact performance through the complete battery runtime)
