MV5 U50/25

Data Matrix CodeElectro-pneumaticDot peen markingIntegration

Fits for every integration task

The ideal application with low space requirements

Videos

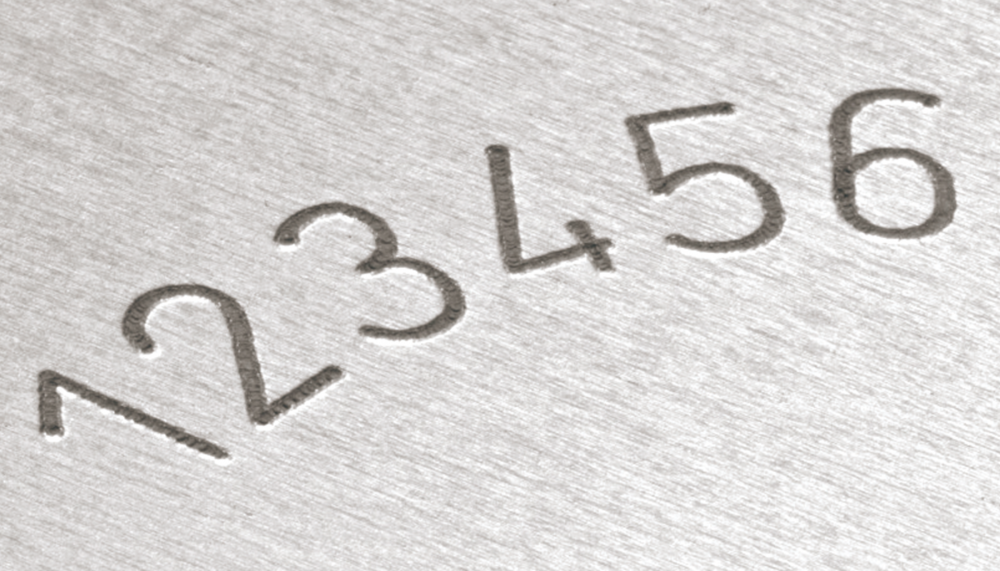

Sample markings

Downloads

Product details

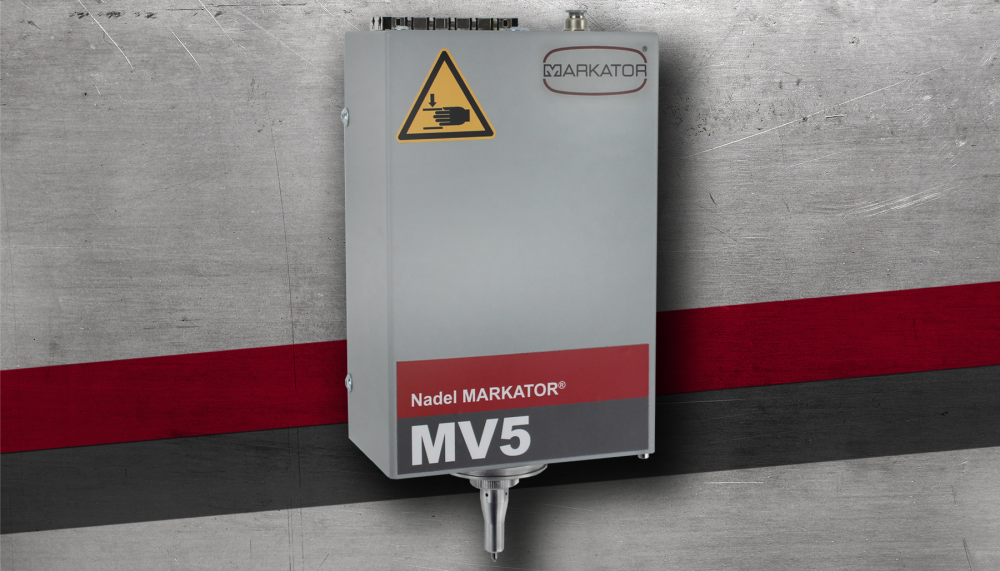

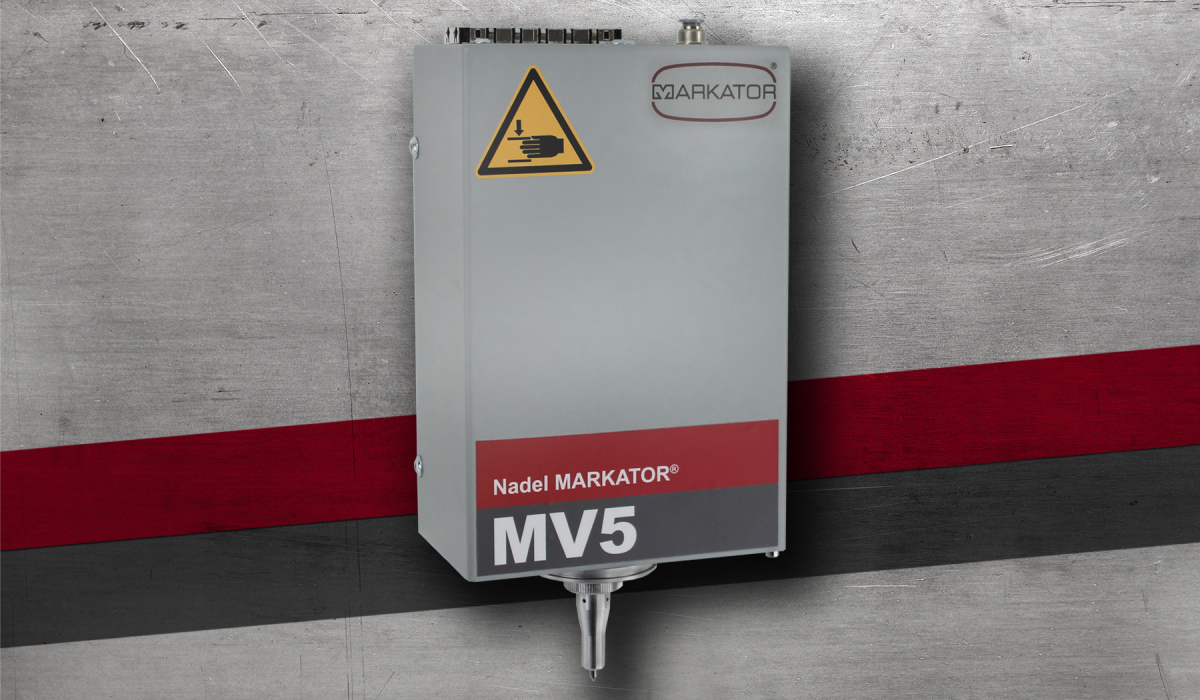

The compact dot peen marking machine MV5 U50/25 is used for permanent marking of all kinds of workpieces. The marking head is stably guided and can be used in combination with high-performance stepper motors in any position. The integration unit convinces with shortest marking times. The marking is done by a fast oscillating solid carbide marking pin. It is available in different sizes so that the marking can be customized for different materials.

MODULAR DESIGN SYSTEM

Simple and space-saving integration into production, assembly and test facilities due to extremely compact design
Optimal customization options
High functionality by combining with various control systems

RELIABLE

Especially high marking quality
High repetition accuracy
Extremely precise and distortion-free marking result due to optimum force transmission to the component to be marked
Stable mechanics through high-quality, double-guided linear guides in X and Y direction

HIGH PERFORMANCE

High marking strength through pneumatic tool drive
Fast oscillating marking pin for precise line markings and fast marking times
The stylus for holding the marking pin is maintenance-free

Marking areas (x/y): 50 x 25 mm / 50 x 45 mm / 80 x 25 mm / 80 x 45 mm / 120 x 25 mm / 120 x 45 mm

Weight: from ca. 2,5kg

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Standard, similar to DIN 1451 in a continous line or in single dot characters, size 5 x 7 and 9 x 13

Resolution of the stepping motors: 0,0125 mm for extrem high marking quality

Protective cover: Kevlar, rubber, leather

Mounting position: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

	MV5 ZE 101 XL	MV5 ZE 401 XL

19" version:	no	yes
Plug-in card slots:	2	4
Operation / Data input:	Touch screen	Clavier en feuille
Interfaces:	2x USB-A, 1x USB-B, RJ45	2x USB-A, 1x USB-B, RJ45
IP54:	yes	yes
Communication cards (optional):	PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)	PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional):	yes	yes
Preconfigured PLC function module, e.g. TIA (optional):	yes	yes
Safety relay module (optional):	yes	yes

MV5 ZE 101 XL

19" version:
nein

Plug-in card slots:
2

Operation / Data input:
Touch screen

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4
