MV54

Scribe markingIntegration

The high performer for car body construction

The specialist where deep scribe markings are required.

Product details

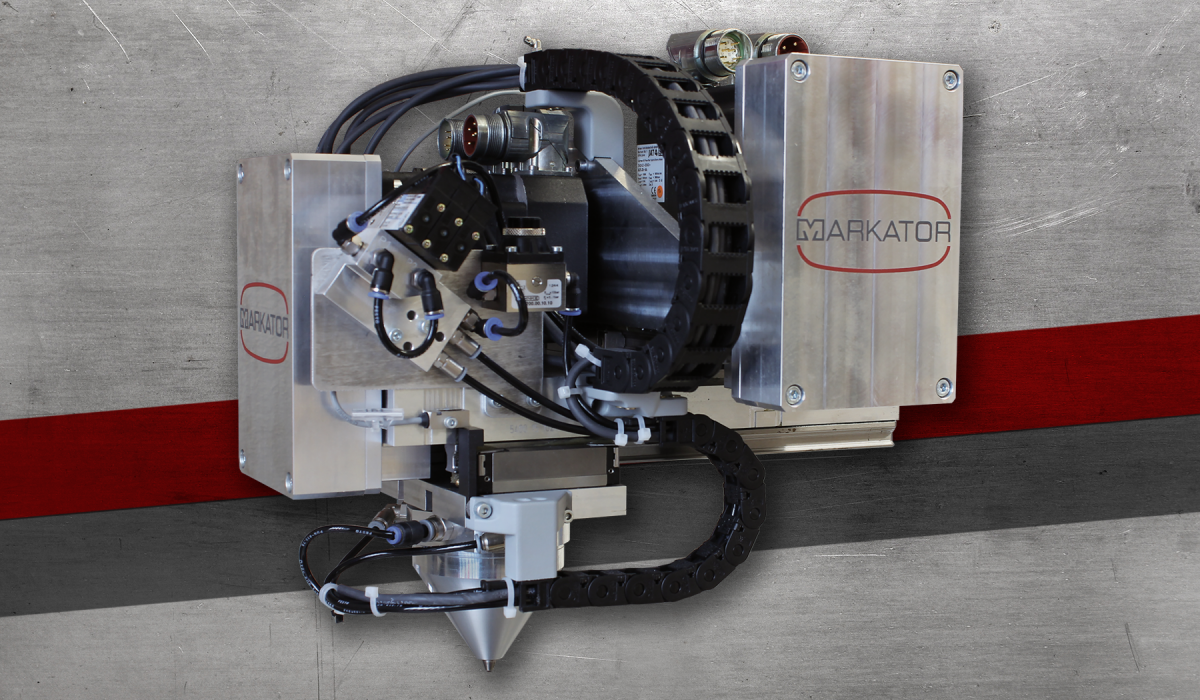

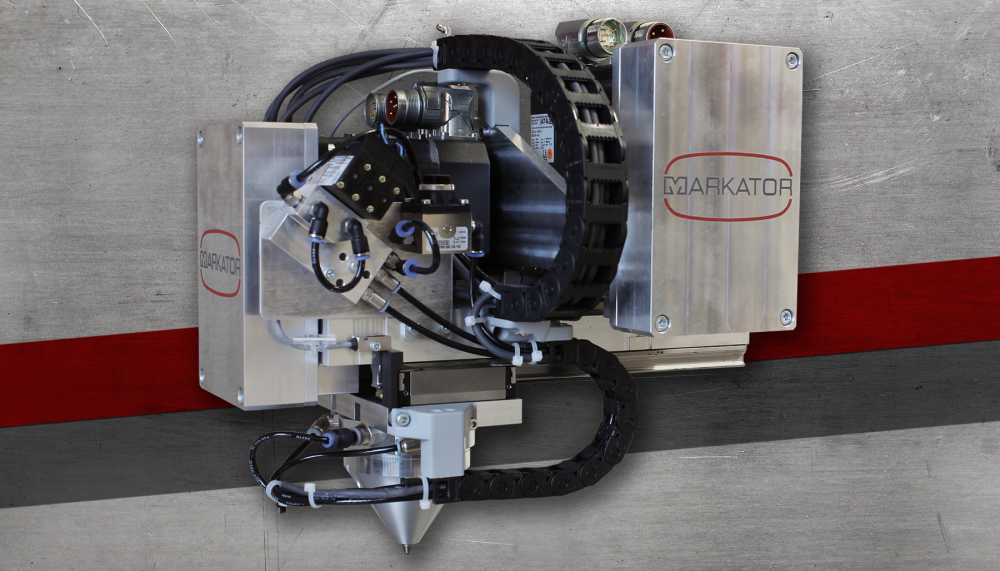

The deep scribe marker MV54 is bursting with power! The very massive and robust deep scribe marking system marks powerfully into almost any material. In addition, the premium quality guides give the deep scribe marker high stability and a very long durability. The scribe marker is characterized by rapid marking speeds, highest marking qualities and optimum adjustment possibilities. The very tough marking pin made of solid carbide is pneumatically driven.

POWER PACK

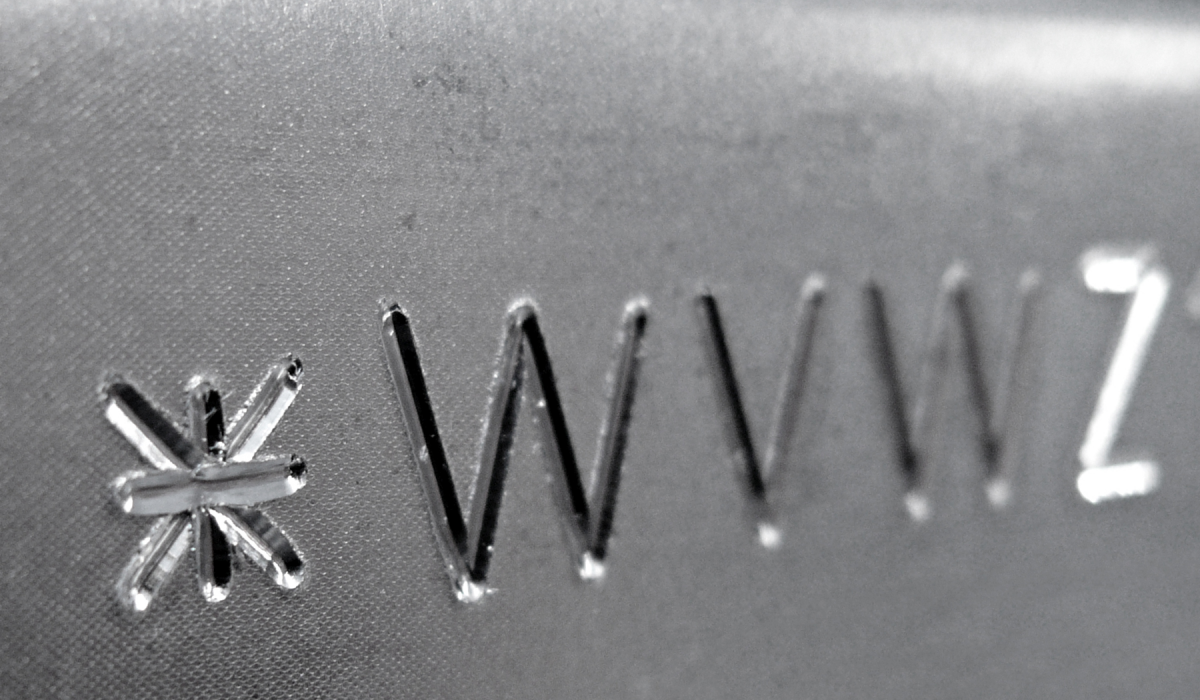

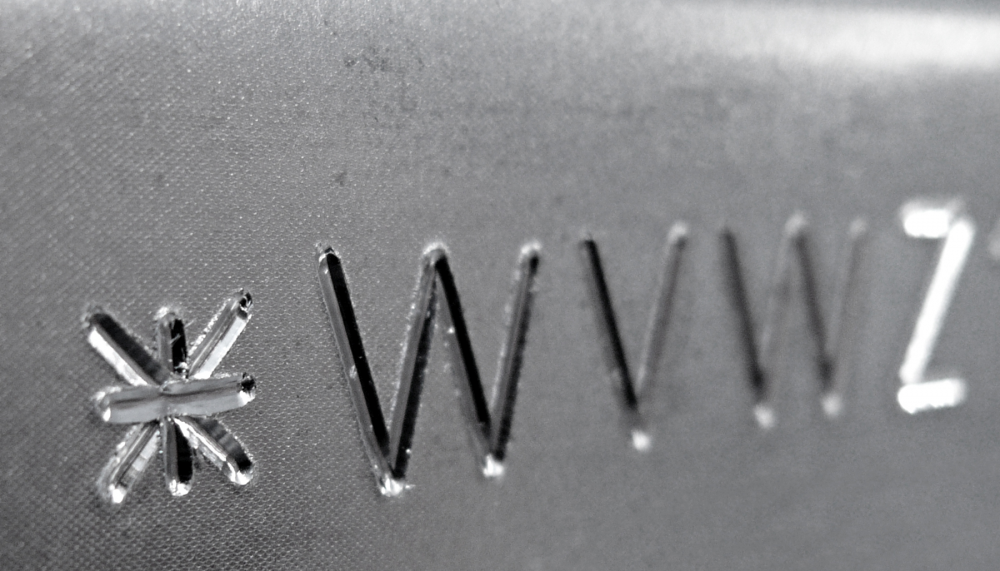

  • Specially designed for scribe marking of vehicle identification numbers and deepness
  • Deep scribe marking
  • Highest repeat accuracy

PROCESS SAFE

  • Position feedback by servo motors
  • State diagnosis marking tool
  • Tool cooling during the scribing process for optimum wear behavior

ROBUST

  • Optimum wear properties through oil-free operation and cooling system for the tool
  • Designed for 3-shift operation in the industrial sector



Marking area (x/y): 160 x 60 mm

Weight: approx. 18,5kg

Available character heights: From 1,0 mm, continuously adjustable in 1/10-steps

Available characters: Capital and small letters A to Z, figures 0 to 9, various punctuation marks

Fonts: Similar to DIN 1451 (other fonts on request available)

Resolution of the stepping motors: 0,0125 mm for extrem high marking quality

Communication board (optional): PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Sensor: available

Mounting position: Any, from 0° to 360°

Central control units

Here you will find the suitable central control units for this marking head.

MV5 ZE 101 XL MV5 ZE 401 XL
19" version: no yes
Plug-in card slots: 2 4
Operation / Data input: Touch screen Clavier en feuille
Interfaces: 2x USB-A, 1x USB-B, RJ45 2x USB-A, 1x USB-B, RJ45
IP54: yes yes
Communication cards (optional): PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell) PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)
Ethernet TCP/ IP (optional): yes yes
Preconfigured PLC function module, e.g. TIA (optional): yes yes
Safety relay module (optional): yes yes

MV5 ZE 101 XL

19" version:
nein

Plug-in card slots:
2

Operation / Data input:
Touch screen

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja

MV5 ZE 401 XL

19" version:
ja

Plug-in card slots:
4

Operation / Data input:
Clavier en feuille

Interfaces:
2x USB-A, 1x USB-B, RJ45

IP54:
ja

Communication cards (optional):
PROFINET CU/LWL, PROFIBUS, Ethernet TCP/IP (Rockwell)

Ethernet TCP/ IP (optional):
ja

Preconfigured PLC function module, e.g. TIA (optional):
ja

Safety relay module (optional):
ja
